TEasy AP 400/600 Automated Pipetting System

For high throughput, automated pipetting.

TEasy Automated Pipetting System is a fully automatic and high precision pipetting system. It is specially used for preparing small-volume PCR/qPCR system, which can replace manually preparation of PCR/qPCR. The system can ensure the accuracy, precision and repeatability of the experiment, and reduce manual operation errors. Meanwhile, TEasy AP 400/600 Automated Pipetting System can be equipped with UV lamp and HEPA, and can also be used for liquid transfer operation of cell culture.

Cat. No	Packing Size
OSE-AP400	1 Set
OSE-AP600	1 Set

Send email to us

Product Detail

Product Tags

Operating Parameters

TEasy AP 400/600 Automated Pipetting System

Supporting Blocks

TEasy AP 400/600 Automated Pipetting System

Features

■ Easy to use: The software operation can be easily mastered within 1 h. The built-in PCR/qPCR preparation program can be modified and transmitted quickly.
■ Compatible consumables: Interchangeable pipette tip with Beckman Biomek 3000 system.
■ Simple maintenance: The automated pipetting module (APM) can be easily replaced and sent back for debugging.
■ High accuracy and precision.

All the products can be customized for ODM/OEM. For details, please click Customized Service(ODM/OEM)

Experimental Example

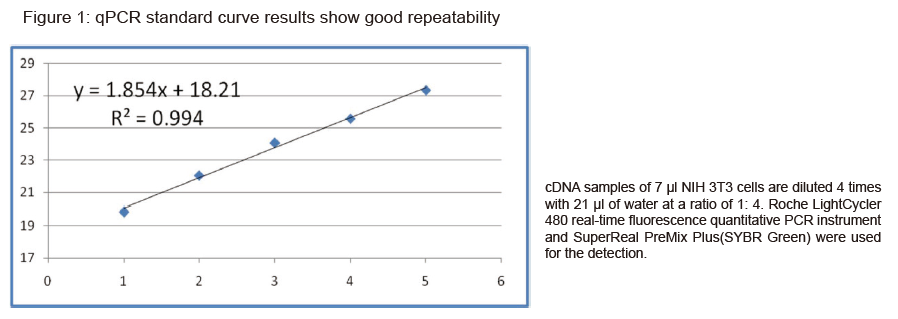

	Figure 1: qPCR standard curve results show good repeatability cDNA samples of 7 μl NIH 3T3 cells are diluted 4 times with 21 μl of water at a ratio of 1: 4. Roche LightCycler 480 real-time fluorescence quantitative PCR instrument and SuperReal PreMix Plus(SYBR Green) were used for the detection.

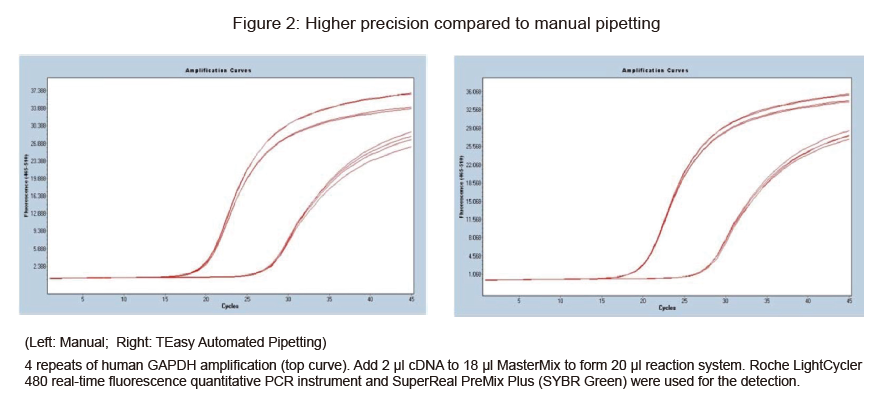

	Figure 2: Higher precision compared to manual pipetting (Left: Manual; Right: TEasy Automated Pipetting) 4 repeats of human GAPDH amplification (top curve). Add 2 μl cDNA to 18 μl MasterMix to form 20 μl reaction system. Roche LightCycler 480 real-time fluorescence quantitative PCR instrument and SuperReal PreMix Plus (SYBR Green) were used for the detection.
